Festool 576797 KV-SYS D8 Domino Connector Range

For the DOMINO DF 500

The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.

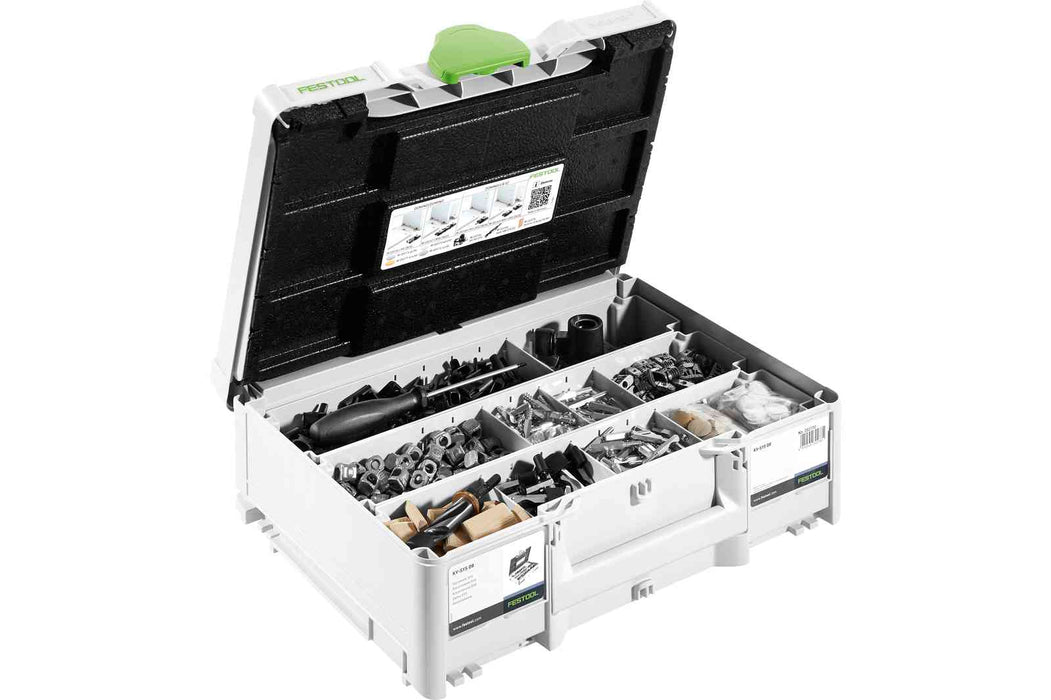

Standard Equipment:

• 70x DOMINO/DOMINO KV D8 basic structure connector
• 20x DOMINO/LR32 KV-LR32 D8 basic structure connector
• 20x DOMINO/DOMINO MSV D8 center panel connector
• 10x DOMINO/LR32 MSV-LR32 D8 center panel connector
• 50 dark brown cover caps (KV-AK D15 brown)
• 50 silver cover caps (KV-AK D15 sliver)
• 50 white cover caps (KV-AK D15 white)
• 50 grey cover caps (KV-AK D15 grey)
• 20x DOMINO D 8 x 36 mm
• BS-KV D15 drill template
• KVB-HW D15 CE hinge location cutter
• Screwdriver
• Systainer SYS3 M 137

Features:

• The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally in combination with DOMINO or a series of holes
• Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture in the workshop as well as with the customer
• All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• all DOMINO structure connectors and furniture connectors quickly at hand and cleanly packed in the Systainer_
