Sawstop TSA-RMG Revolution Miter Gauge

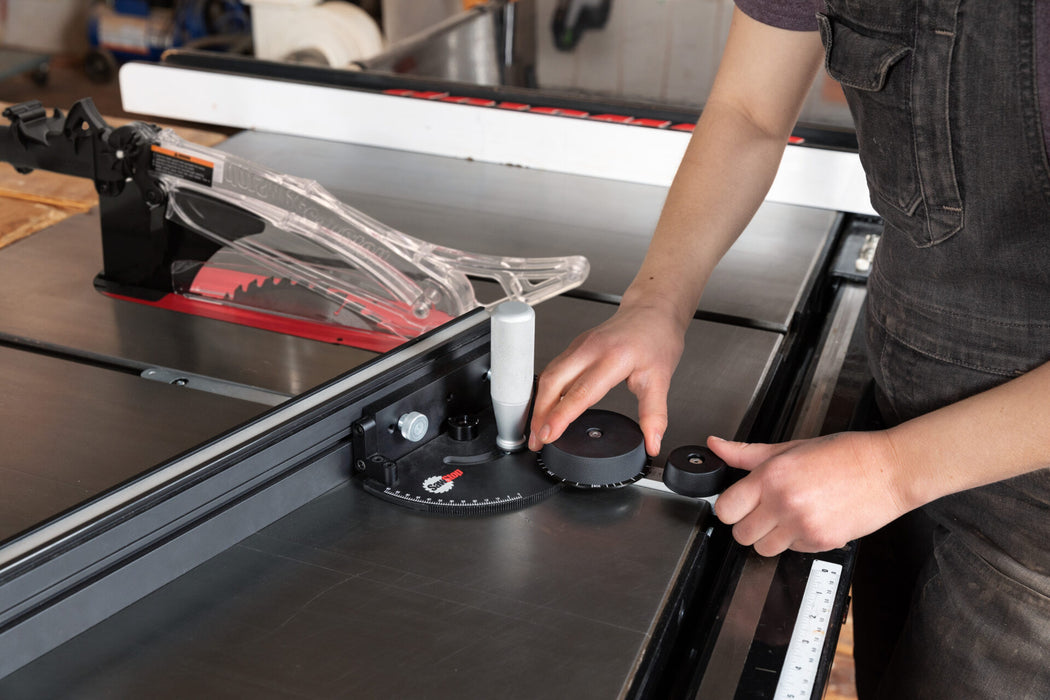

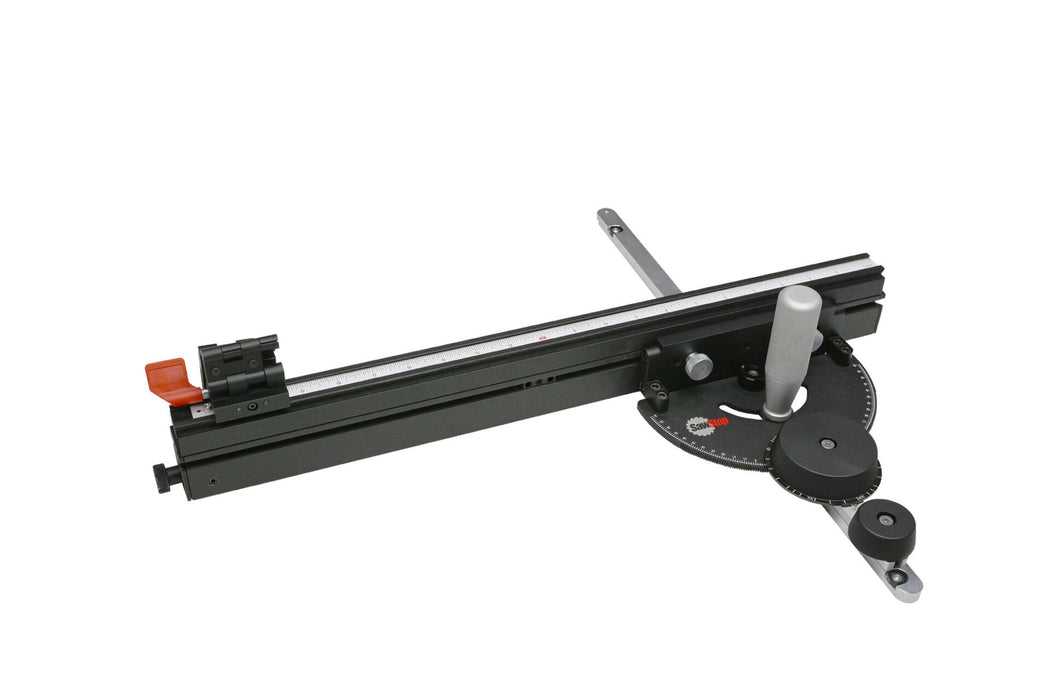

Get unmatched precision and accuracy with the turn of a dial with SawStop's Revolution Miter Gauge. Setting angles is quick and easy using the intuitive geared dial system, set in increments of 1°, 1/2°, 1/4°, or 1/10° with a positive "click" in each notch, or bypass the gear system for free turning. The extruded aluminum telescoping fence provides a solid reference surface for workpieces, with a maximum crosscut of 37-1/2" using the included flip stop.

Standard Equipment:

• Miter Gauge Body and Miter Bar
• Telescoping Fence
• Flip Stop Assembly
• (6) Sliding Wedges
• (3) Thumbscrews
• (1) 2mm Hex Wrench
• (1) 2.5mm Hex Wrench
• (1) 3mm Hex Wrench
• (1) 4mm Hex Wrench

Specifications:

• Miter Bar Length: 20"
• Fence Length (Retracted): 19-1/2"
• Weight: 8.4 lbs.
• Fence Length (Fully Extended): 37-1/2"
• Angle Range: 60° Left And Right
• Fence Height: 3"
• Miter Slots: T-Shaped - 3/4" At Top, 1" At Bottom, 3/8" Deep

Features:

• The miter angle dial has preset increments of 1°, 1/2°, 1/4°, or 1/10° with tactile feedback so you can feel your desired angle click into place, making angle adjustments reliably accurate - quick and easy.
• Common miter angles 0°, 22-1/2°, 30°, and 45° are noted and easy to set quickly.
• Sliding wedge system for fence attachments and repeatable stops. The reversible, telescoping fence works with the miter gauge in either the left or right miter slots with equal accuracy and ease of use.
• Make repeatable cuts up to 37-1/2" in length using the tool-free articulating flip stop - with or without a sacrificial fence. A micro-adjuster lets you fine-tune a crosscut length without repositioning the flip stop. The flip stop includes mounting holes for adding jigs or locking into the wedge system.
• Heavy-duty construction including a steel miter plate manufactured with machine tolerances of <.001" for exceptional precision.
• A washer at the front end of the miter bar fits into 3/8" x 3/4" T-shaped miter slots to keep the miter gauge level when the head is pulled off the table for wide crosscuts. This washer can also be removed for use in non-T-shaped miter slots.
• The miter bar has three adjustable pucks to eliminate side-to-side wiggle in the miter slot.
