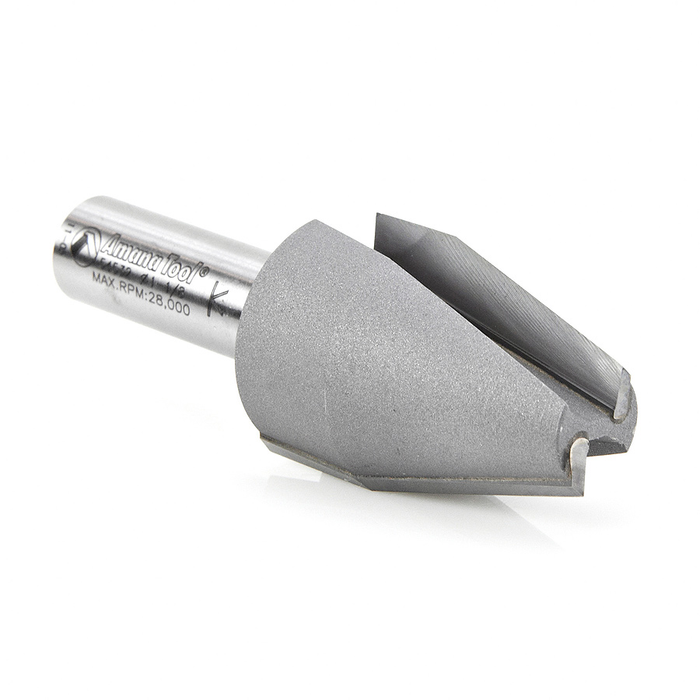

Amana 54532 Traditional Vertical Raised Panel Router Bit

Door Making Router Bits: Vertical Raised Panel Router Bits, Carbide Tipped: 15° x 1-1/8" Dia x 1-5/8" x 1/2" Shank

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: "cathedral" door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.

Standard Equipment:

• 54532 Traditional Vertical Raised Panel Router Bit

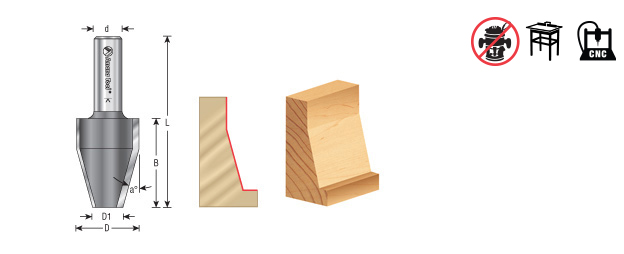

Specifications:

• Diameter (D): 1-1/8"
• D1: 19/32"
• Angle (a°): 15°
• Cutting Height (B): 1-5/8"
• Shank (d): 1/2"
• Overall Length (L): 3-1/8"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
