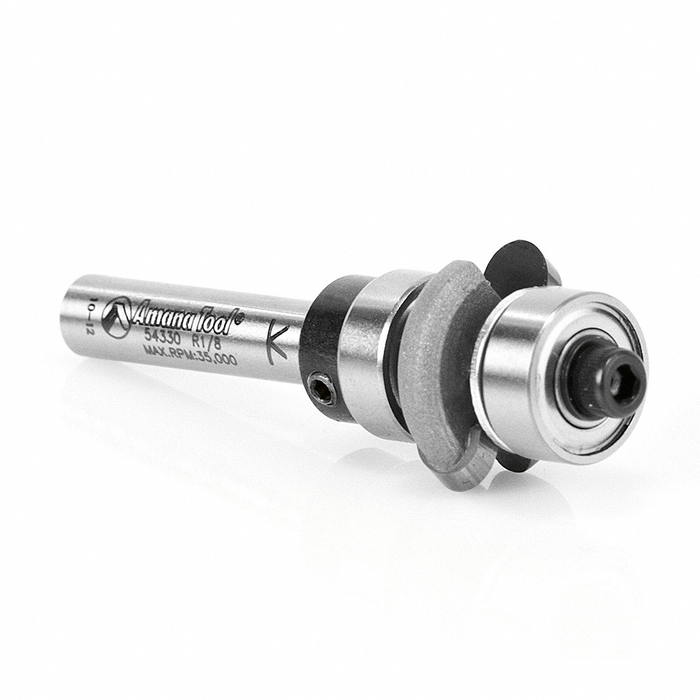

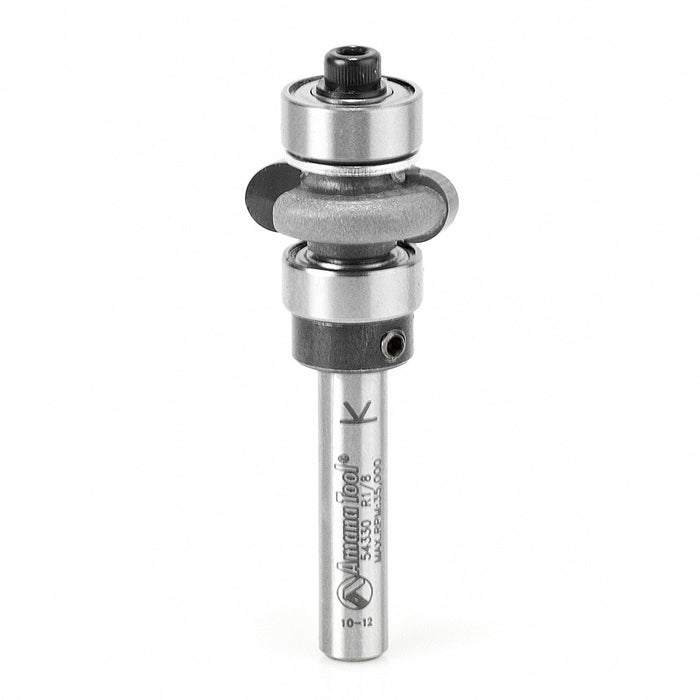

Amana 54330 Edge Fluting Assembly

Profiling Router Bits: Edge Fluting Router Bits, Carbide Tipped: 1/8" Rad x 3/4" Dia x 1/4" x 1/4" Shank

Cut individual flutes - shallow, small-radius grooves - in narrow edges without having to balance a router on that edge. The bit cuts at right angles to the bit axis. Flute depth is controlled by the pilot bearing, the flute's position by the router's bit-height setting. Use in a handheld or table-mounted router.

Standard Equipment:

• 54330 Edge Fluting Assembly

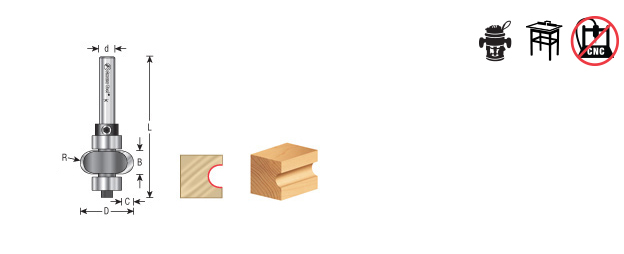

Specifications:

• Diameter (D): 3/4"
• Radius (R): 1/8"
• Cutting Height (B): 1/4"
• Shank (d): 1/4"
• C: 1/8"
• Overall Length (L): 2-1/4"
• Flutes: 2
• Replacement Collar: 47724
• Replacement Bearing: 47701, 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
