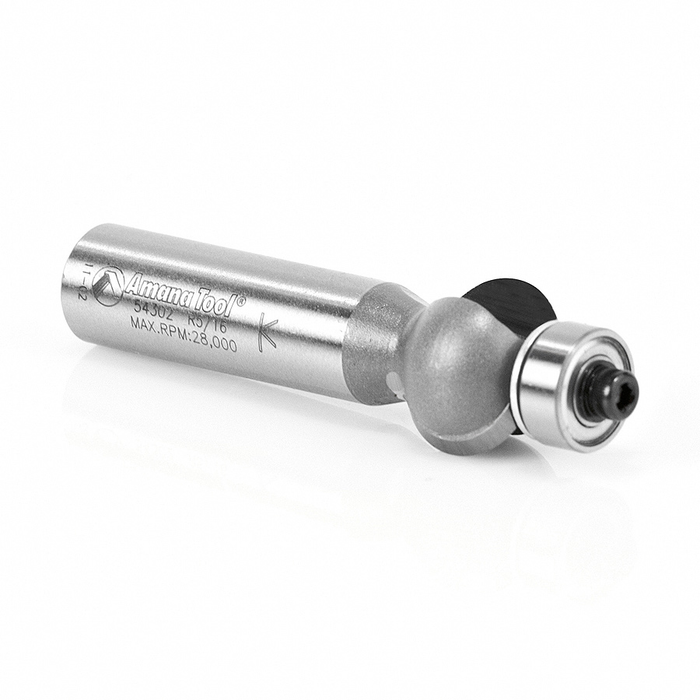

Amana 54302 Edge Fluting Router Bit

Profiling Router Bits: Edge Fluting Router Bits, Carbide Tipped: 5/16" Rad x 3/4" Dia x 1/2" x 1/2" Shank

This bit produces a fingernail flute, rather than a full 180° radius flute. Creates an interesting edge detail, and can be used to make small-scale cornice-type moldings. Use in a handheld or a table-mounted router.

Standard Equipment:

• 54302 Edge Fluting Router Bit

Specifications:

• Diameter (D): 3/4"
• Radius (R): 5/16"
• Cutting Height (B): 1/2"
• Shank (d): 1/2"
• C: 1/8"
• Overall Length (L): 2-3/4"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
