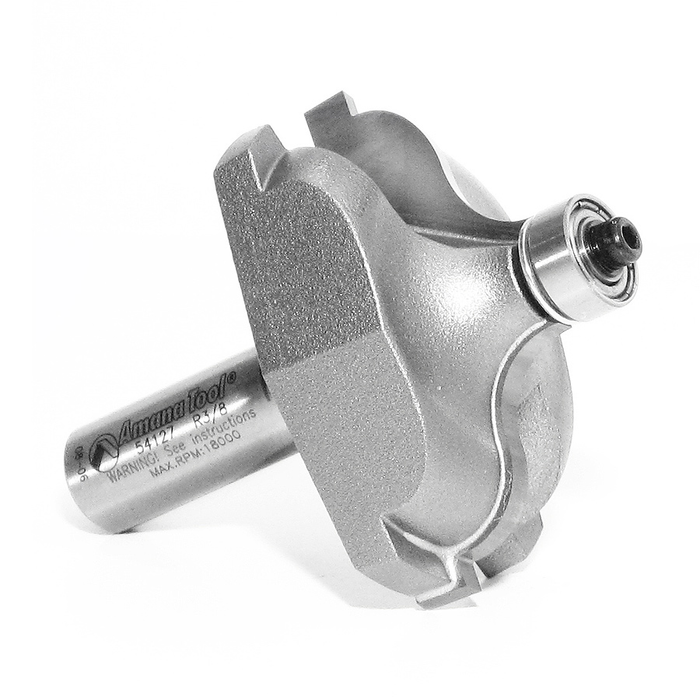

Amana 54127 Ogee Fillet Router Bit

Door Making Router Bits: Ogee Router Bits, Carbide Tipped: 3/8" Rad x 2-1/4" Dia x 15/16" x 1/2" Shank

This ogee pattern has a step at the end of the concave portion of the curve. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Maximum RPM 18,000.

Standard Equipment:

• 54127 Ogee Fillet Router Bit

Specifications:

• Diameter (D): 2-1/4"
• Radius (R): 3/8"
• Cutting Height (B): 15/16"
• Shank (d): 1/2"
• Overall Length (L): 2-7/8"
• Replacement Bearing: 47706
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
