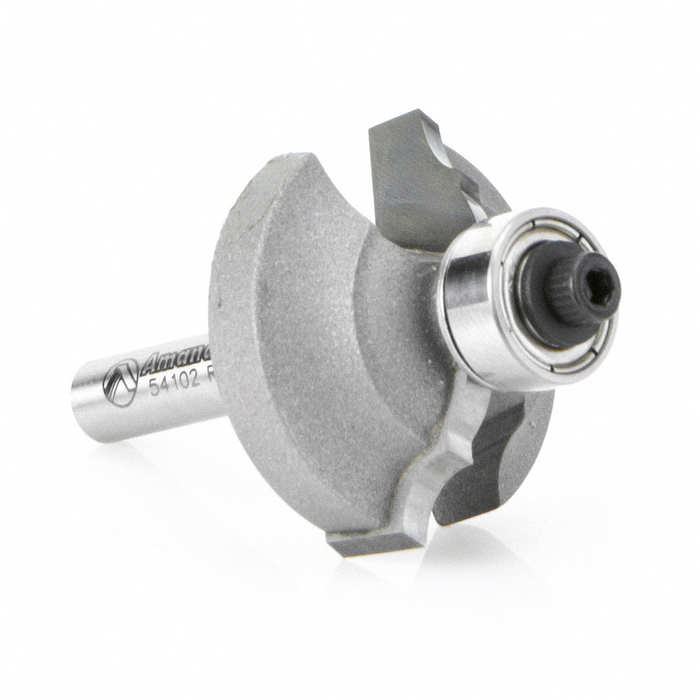

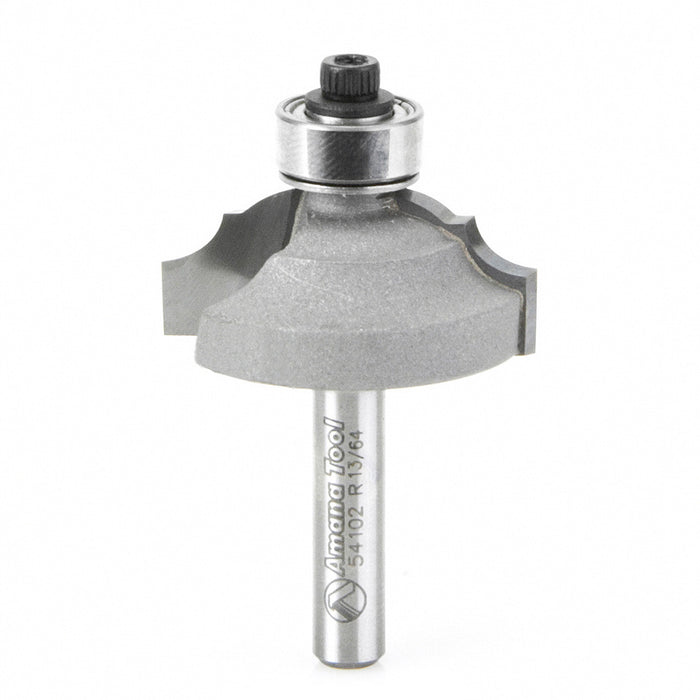

Amana 54102 Classical Cove & Bead Router Bit

Profiling Router Bits: Classical Cove & Bead Router Bits, Carbide Tipped: 13/64" x 5/16" Rad x 1-1/4" Dia x 1/2" x 1/4" Shank

This bead and cove combines the two basic forms, separating them with a fillet. The cove comes off the pilot bearing. Produce a complex profile in a single pass. Use in a handheld or table-mounted router.

Standard Equipment:

• 54102 Classical Cove & Bead Router Bit

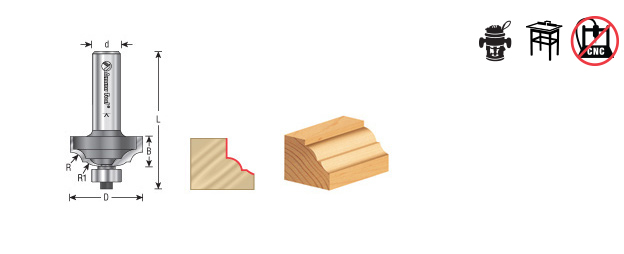

Specifications:

• Radius: 13/64"
• Diameter (D): 1-1/4"
• Cutting Height (B): 1/2"
• R1: 5/16"
• Shank (d): 1/4"
• Overall Length (L): 2"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
