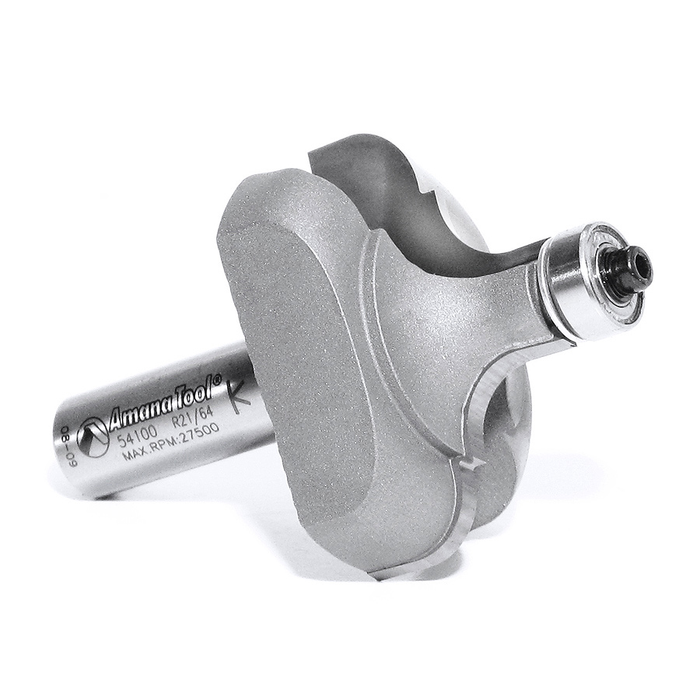

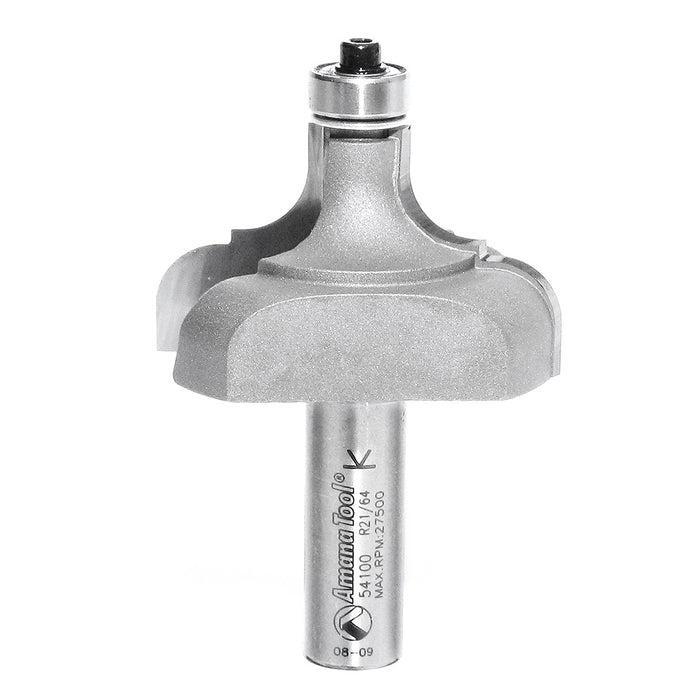

Amana 54100 Classical Cove & Bead Router Bit

Profiling Router Bits: Classical Cove & Bead Router Bits, Carbide Tipped: 11/32" x 11/32" Rad x 2" Dia x 1-1/4" x 1/2" Shank

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Maximum RPM 18,000.

Standard Equipment:

• 54100 Classical Cove & Bead Router Bit

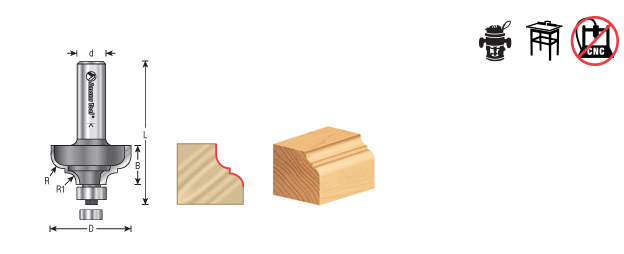

Specifications:

• Radius: 11/32"
• Diameter (D): 2"
• Cutting Height (B): 1-1/4"
• R1: 11/32"
• Shank (d): 1/2"
• Overall Length (L): 3-1/8"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
