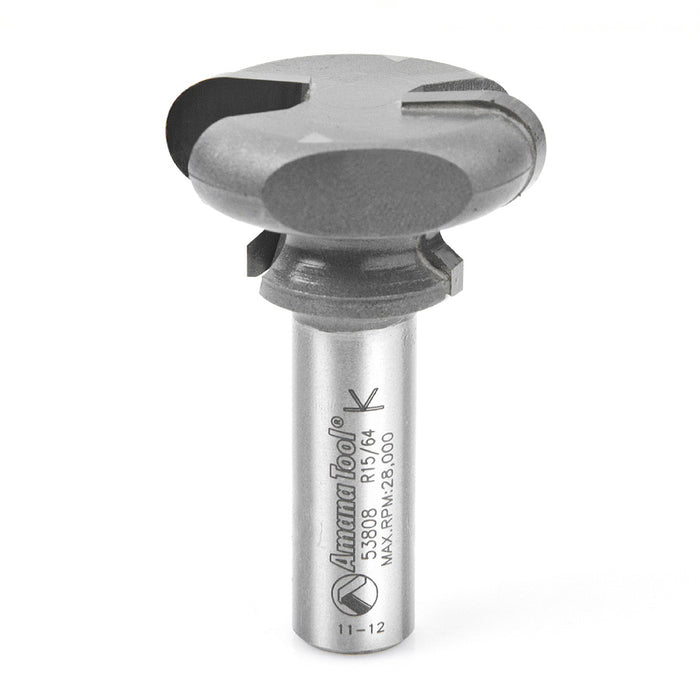

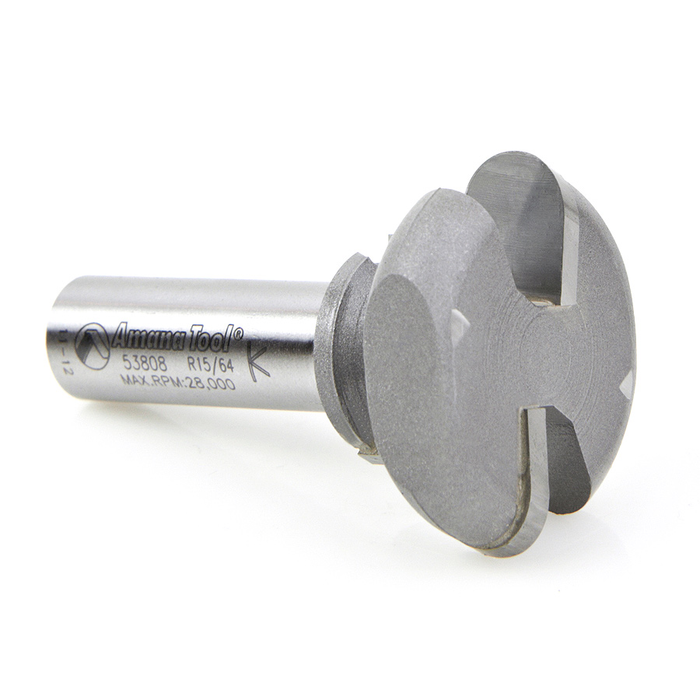

Amana 53808 Finger Grip Router Bit

Door Making Router Bits: Finger Grip & Door Lip Router Bits, Carbide Tipped: 5/64" x 15/64" Rad x 1-1/2" Dia x 13/16" x 1/2" Shank

Produce clean, modern chests and cabinets uninterrupted by hardware pulls and knobs by integrating the pulls into the doors, drawers and lids. These one-pass cutters offer many appearance and ergonomic options, providing positive grips and softened, easy-on-the-fingers edges. All bits can be used in CNC and table-mounted routers. Larger diameter cutters will work in edge-guide or template-guide equipped handheld routers.

Standard Equipment:

• 53808 Finger Grip Router Bit

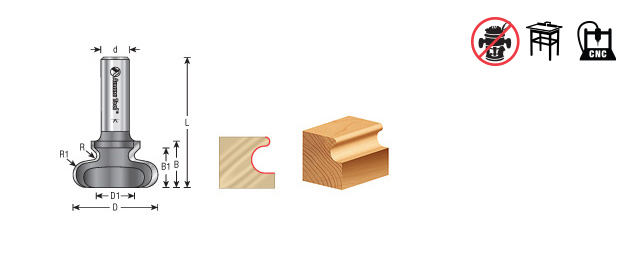

Specifications:

• Radius (R): 5/64"
• R1: 15/64"
• Diameter (D): 1-31/64"
• D1: 11/16"
• Cutting Height (B): 53/64"
• B1: 45/64"
• Shank (d): 1/2"
• Overall Length (L): 2-21/64"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
