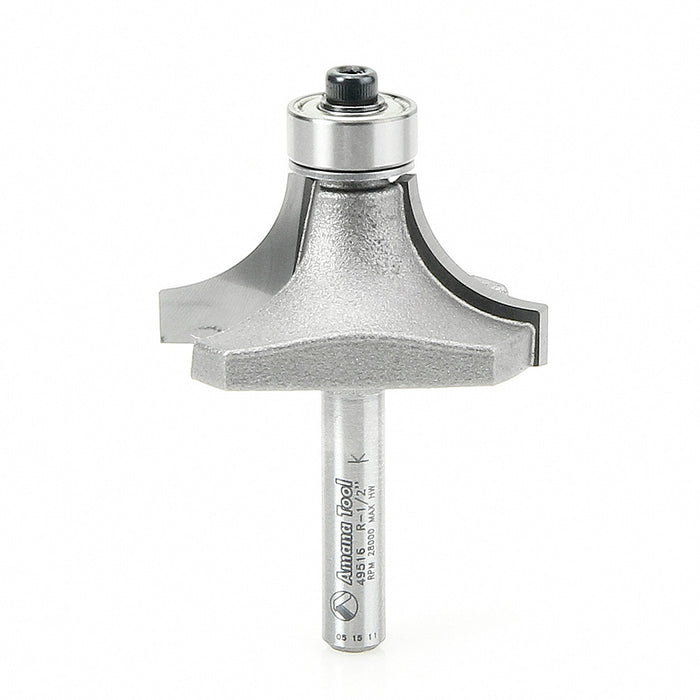

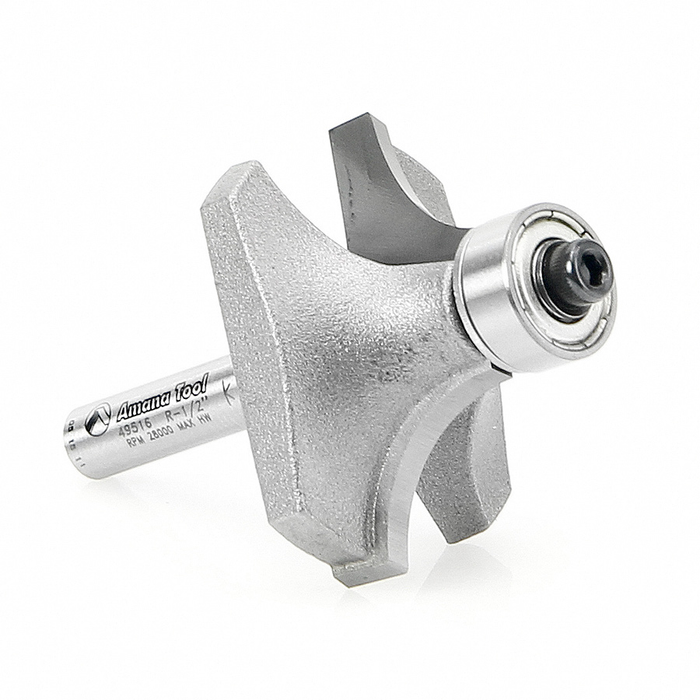

Amana 49516 Corner Round Router Bit

Profiling Router Bits: Corner Round Router Bits, Carbide Tipped: 1/2" Rad x 1-1/2" Dia x 3/4" x 1/4" Shank

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Standard Equipment:

• 49516 Corner Round Router Bit

Specifications:

• Radius (R): 1/2"
• Diameter (D): 1-1/2"
• Cutting Height (B): 3/4"
• D1: 1/2"
• Shank (d): 1/4"
• Overall Length (L): 2-1/4"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
