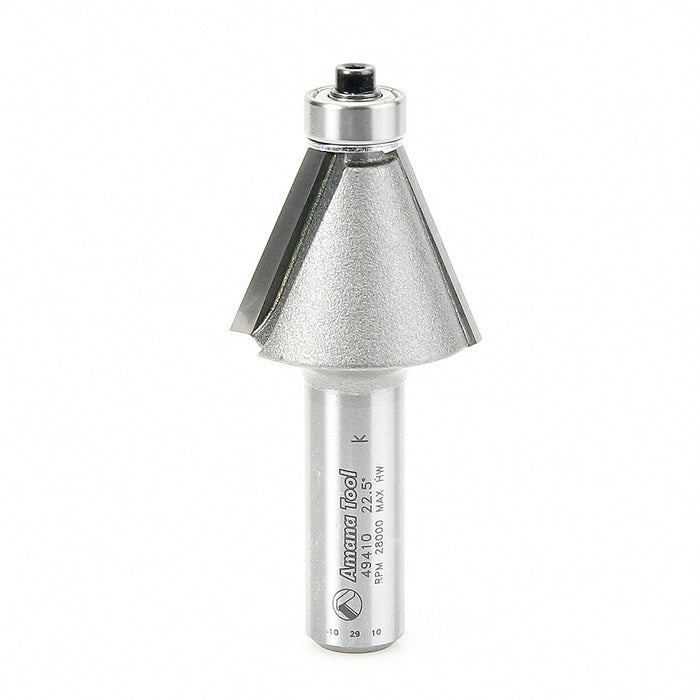

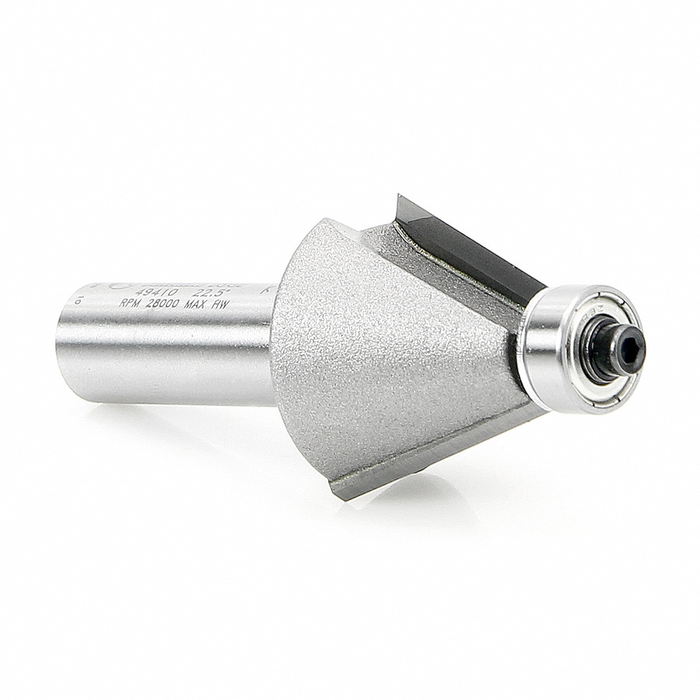

Amana 49410 Chamfer Router Bit

Profiling Router Bits: Chamfer Router Bits, Carbide Tipped: 22-1/2° x 1-1/4" Dia x 15/16" x 1/2" Shank

Chamfer or bevel edges for decorative effect or to form edge miter joints. Produce crisp, uniform edges at accurate angles to make 4-, 6-, 8-, 12-, or 16-sided boxes. For best results use in a router table. Will completely chamfer 3/4" material.

Use in a table-mounted router. Not for use in a handheld router!

Standard Equipment:

• 49410 Chamfer Router Bit

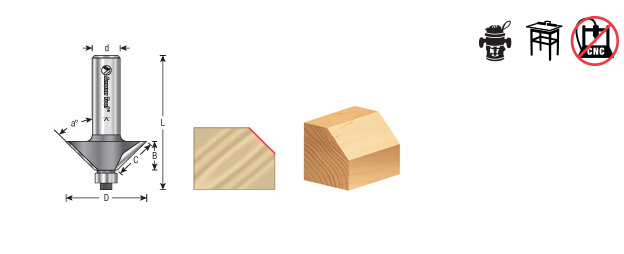

Specifications:

• Angle (a°): 22-1/2°
• Diameter (D): 1-1/4"
• Cutting Height (B): 15/16"
• C: 7/8"
• Shank (d): 1/2"
• Overall Length (L): 2-7/8"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
