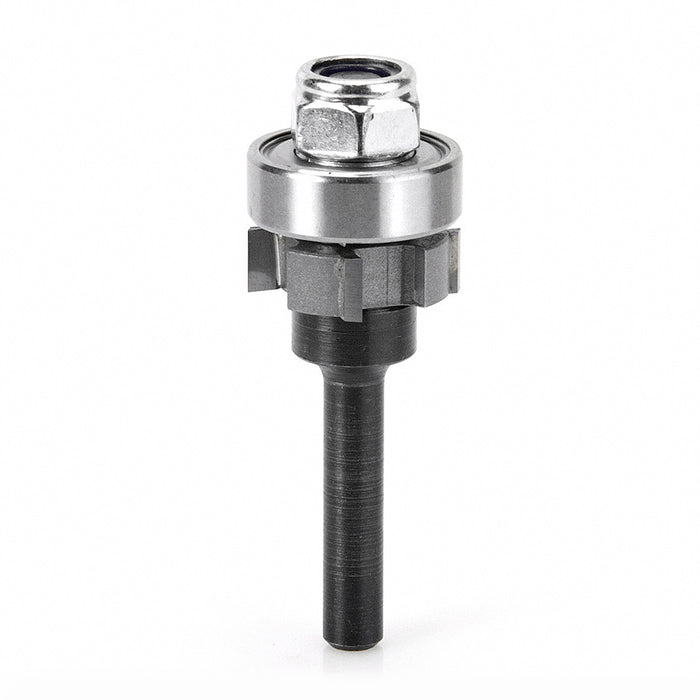

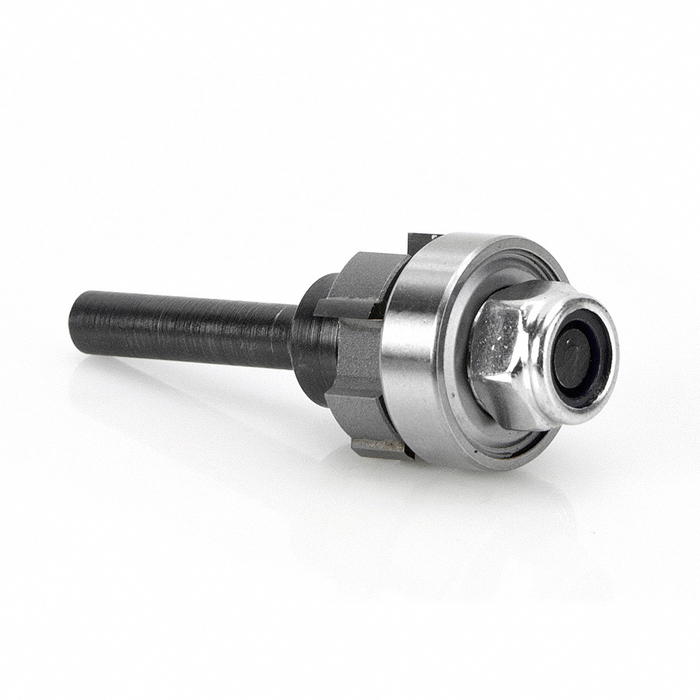

Amana 47400 4 Wing Flush Trim Single Bevel Cutter Router Bit Assembly

Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 0° x 7/8" Dia x 1/4" x 1/4" Shank with Ball Bearing

An assembly offers the option of switching cutters - from flush trim to either of two bevel trims - without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.

Standard Equipment:

• 47400 4 Wing Flush Trim Single Bevel Cutter Assembly

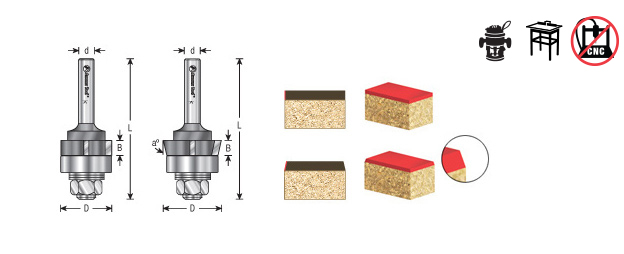

Specifications:

• Angle (a°): 0°
• Diameter (D): 7/8"
• Cutting Height (B): 1/4"
• Shank (d): 1/4"
• Overall Length (L): 2-3/8"
• Wings: 4
• Replacement Bearing: 47708

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
