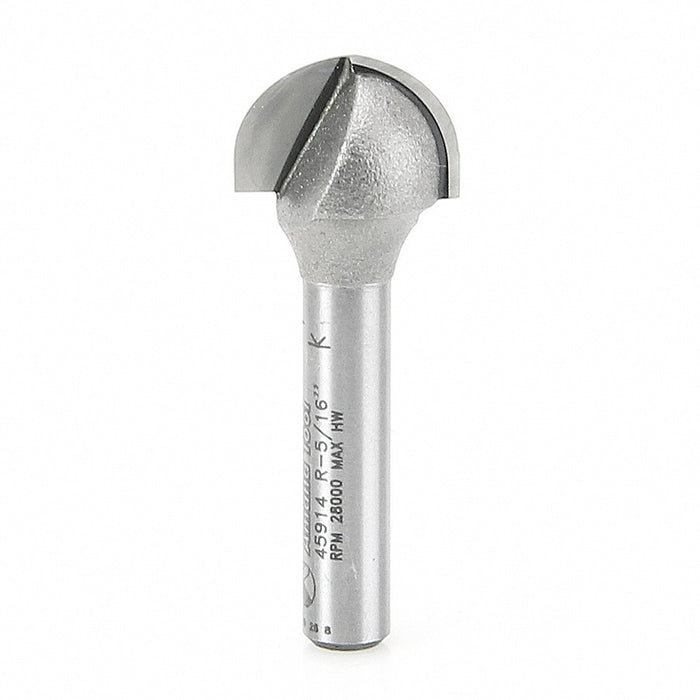

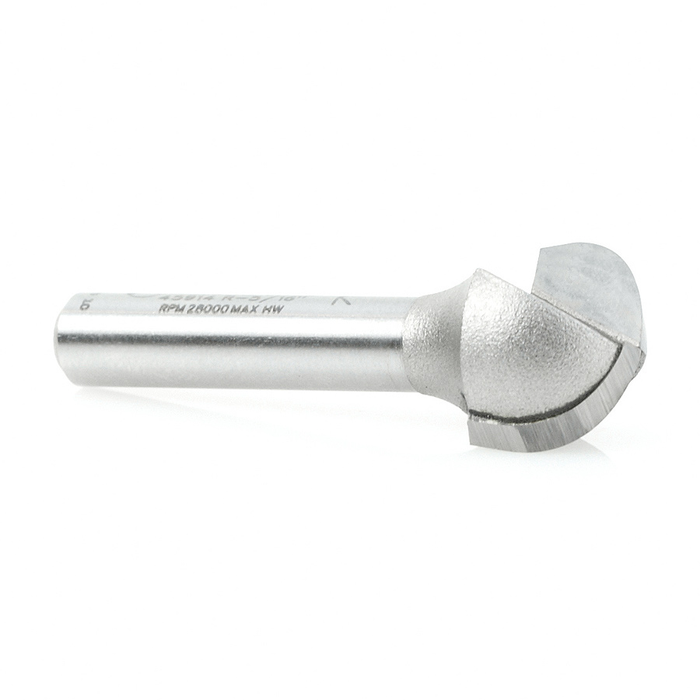

Amana 45914 Core Box Router Bit

Profiling Router Bits: Core Box Router Bits, Carbide Tipped: 5/16" Rad x 5/8" Dia x 7/16" x 1/4" Shank

Cut half-round grooves for fluted moldings, columns, millwork and signs using a core box bit. Used with an edge guide, it can cut coves. Can be used with handheld, table-mounted and CNC routers. Perfect for making flutes on CNC machines.

Perfect for juice groove in cutting boards.

Standard Equipment:

• 45914 Core Box Router Bit

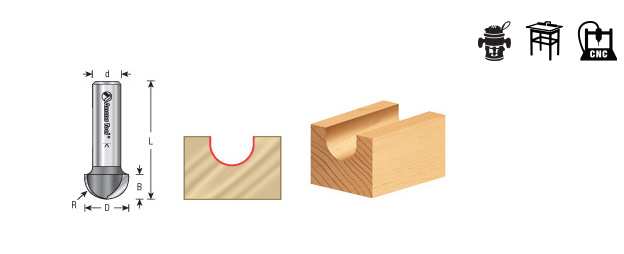

Specifications:

• Radius (R): 5/16"
• Diameter (D): 5/8"
• Cutting Height (B): 7/16"
• Shank (d): 1/4"
• Overall Length (L): 1-5/8"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
