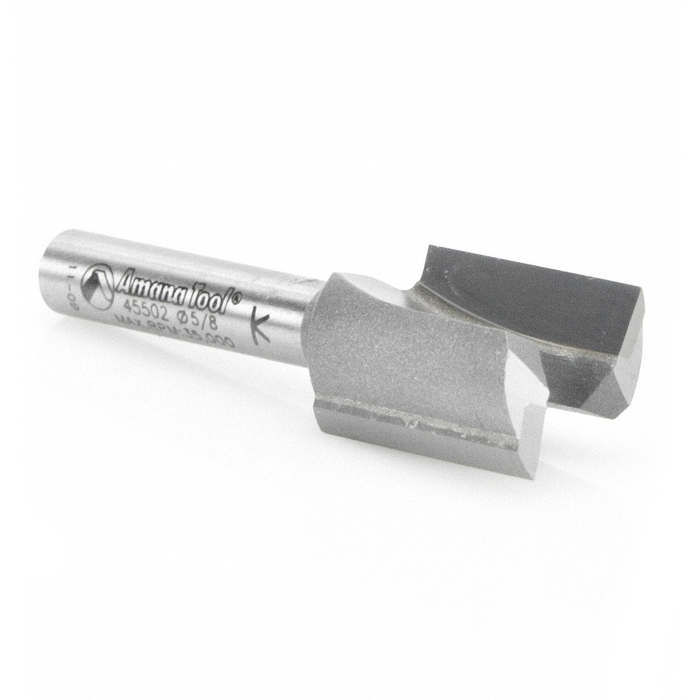

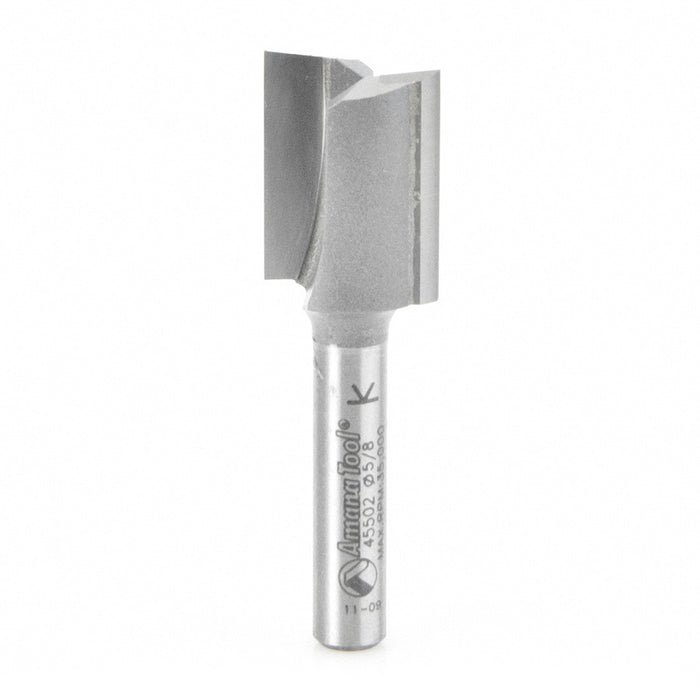

Amana 45502 Mortising Router Bit

Straight Plunge Router Bits: Mortising Router Bits, Carbide Tipped: 5/8" Dia x 3/4" x 1/4" Shank

Cutting mortises for hinges and locks can be challenging; the mortise depth must be accurate for smooth operation and the edges must be sharp for a clean, professional installation. These mortise bits make hardware installation a snap. The large gullet between the two flutes clears chips away quickly and the cutter geometry creates a crisp outline for a perfect fit.

Standard Equipment:

• 45502 Mortising Router Bit

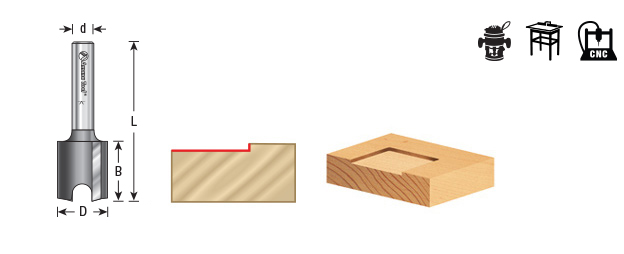

Specifications:

• Diameter (D): 5/8"
• Cutting Height (B): 3/4"
• Shank (d): 1/4"
• Overall Length (L): 2"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
