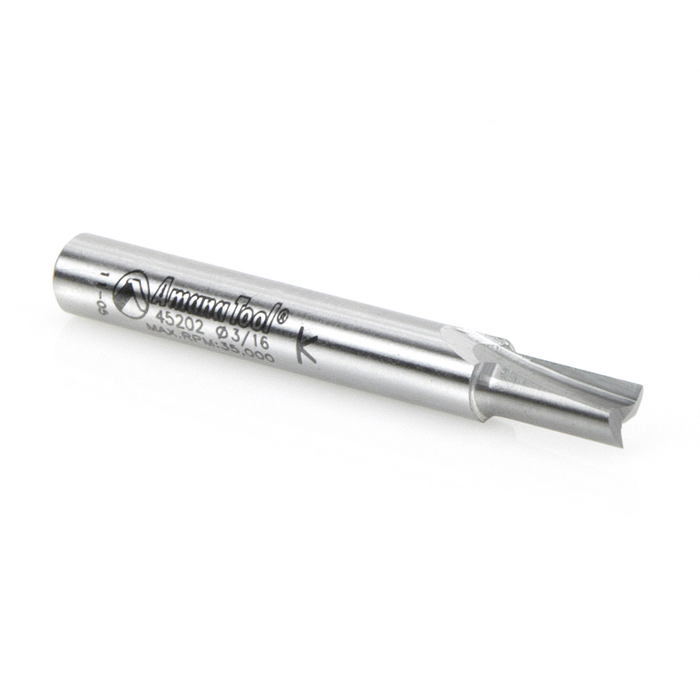

Amana 45202 High Production Straight Plunge Router Bit

Straight Plunge Router Bits: High Production Router Bits, Solid Carbide Cutting Edge: 3/16" Dia x 7/16" x 1/4" Shank

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45190 features a solid carbide cutting edge (solid carbide brazed to steel shank).

Perfect for CNC work.

Standard Equipment:

• 45202 High Production Straight Plunge Router Bit

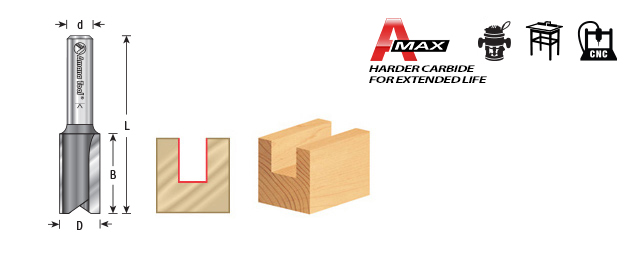

Specifications:

• Diameter (D): 3/16"
• Cutting Height (B): 7/16"
• Shank (d): 1/4"
• Overall Length (L): 2"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth

AMAX Extended Life Features:

• 200% longer life time even when working with abrasive materials
• Superior geometric design
• Advanced grinding technology that improves the carbides' resistance to wear
• Super clean cuts
